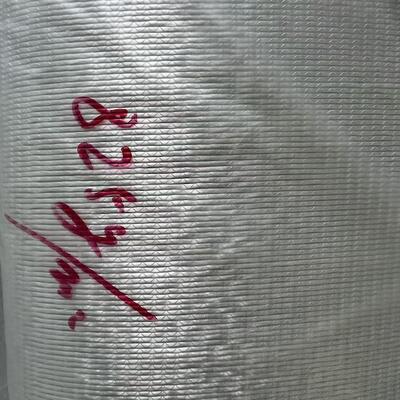

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
| उत्पत्ति के प्लेस | चीन |
|---|---|
| प्रमाणन | ISO 9000 |
| मॉडल संख्या | ईएलटीएम825-1270 |
| न्यूनतम आदेश मात्रा | 500 किग्रा |
| मूल्य | negotiatable |
| पैकेजिंग विवरण | रोल को प्लास्टिक की फिल्म से लपेटा जाता है और फिर बुने हुए बैग में पैक किया जाता है। आमतौर पर 9 पैले |
| प्रसव के समय | 7 दिन |
| भुगतान शर्तें | टी/टी, एल/सी |
| आपूर्ति की क्षमता | 20MT एक सप्ताह |
उत्पाद विवरण
| सामग्री | ई ग्लास डायरेक्ट रोविंग | रंग | सफ़ेद |
|---|---|---|---|
| बनावट | 90° और 0° संयोजन | चौड़ाई | 1270 मिमी |
| राल | अनसैचुरेटेड राल और अन्य प्रकार | आवेदन | नई ऊर्जा वाहन के लिए बैटरी का बॉक्स |
| वज़न | 825 ग्राम |
उत्पाद विवरण
825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
Introduction:
Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of composites fabric to obtain specific performance.
Specifications:
| Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt (g/m2) |
Width (mm) |
| ELT 450 | 450 | 250 | 200 | / | / | 150 - 2600 |
| ELT 600 | 600 | 336 | 264 | / | / | 150 - 2600 |
| ELT 800 | 800 | 420 | 380 | / | / | 150 - 2600 |
| ELTP 500 | 500 | 250 | 210 | / | 40 | 150 - 2600 |
| ELTM 600 | 600 | 250 | 200 | 150 | / | 150 - 2600 |
| ELTM 900 | 900 | 336 | 364 | 200 | / | 150 - 2600 |
| ELTM 1050 | 1050 | 336 | 414 | 300 | / | 150 - 2600 |
| ELTM 1200 | 1200 | 420 | 430 | 350 | / | 150 - 2600 |
| ELTMP 640 | 640 | 250 | 200 | 150 | 40 | 150 - 2600 |
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of the product i multi direction
● Fiber straight arrangemet, max. usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
